Free consultation hotline18302431555
liaoningshengshenyangshihepingquhunhezhanxiangmanrongcun

Product Center

HOME > English > Product Center > Grain dryer > Small grain dryer

Product model:Hot blast stove

Release time:2017-05-17 Browse number:112people information sources:

National agricultural subsidized product



The wastes are utilized to reduce costs, save energy and protect the environment!

tel:024-85856600 85856699

Product introduction

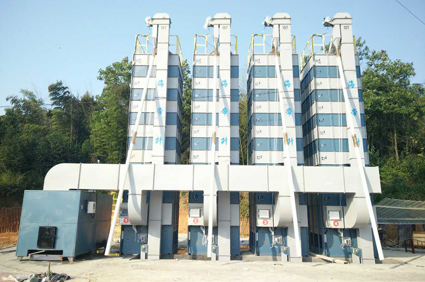

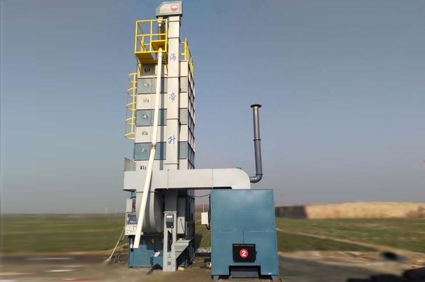

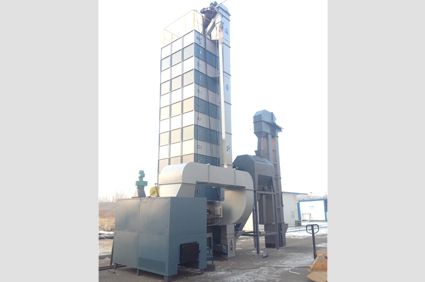

The grain dryer developed by LIAONING HIDEAR SHENG MACHINERY CO., LTD with efforts for years can dry multiple corns, including rice, corn, barley and wheat. The dryer adopts advanced technology, has high automation, is easy to operation, has reliable performance, small noise, weak vibration, short drying duration, and saves the fuel and energy remarkably. The practice has proved that, it can save energy by about 20-25% compared with other equipment with the same drying capacity.

Such dryer has wide application scope, is convenient to combine and can set different drying sections as per different moisture elimination level of grain to meet the requirements on moisture elimination and output. The equipment has low crackle ratio and can be used to dry seeds to enhance the economic benefit.

Application range


Product features


Configuration and parameter

Item

Basic configuration and technical parameters

Model

HDS-L8000D-Y

HDS-L10000D-Y

HDS-L12000D-Y

HDS-L15000D-Y

HDS-L20000D-Y

HDS-L30000D-Y

Processing capacity (kg/ time)

8000

10000

12000

15000

20000

5000-30000

Overall

dimensions

Length (mm)

3636 (base size 2060)

3786 (base size 2060)

4505(base size 2760)

width (mm)

2190(base size 2060)

2490(base size 2060)

2910(base size 2760)

Height (mm)

8080

8625

9715

10805

10805

12410

Overall weight (kg)

2600

2800

3000

3200

3400

6400


Ventilator


Form

Diagonal flow type

Diagonal flow type

Diameter (mm)

750

750

Number of revolutions (rpm)

1450

1450

Heat supply method

Form

Lance type burner/hot air/steam heat exchange

Fuel

Diesel/coal, rice chaff, biamass

Rated voltage (V)

Single phase 220/ three phases 380

three phases 380

Max. power (kW)

9.07

17.97

Performance

Materials loading time (min)

30-35

40-45

45-50

60-65

70-75

60-65

Materials discharge time (min)

30-35

40-45

45-50

60-65

70-75

60-65

Moisture elimination rate (%/h)

0.6-1.0

(min)Single circulation time (min)

30-35

40-45

45-50

60-65

70-75

60-65


accessory products

Hot blast stoveLearn more

The hot blast heater is researched and designed according to the combustion characteristics of biomass, e.g., rice shell, straw and cavings, etc. After combustion, the clean air is generated through heat exchange. Then, the drying is conducted. It has superior performance and can use various renewable energies. Multiple granular or powdered fuels, e.g., rice shell, straw, sawdust and coal, can be fully combusted at semi-floating state. Its hot air efficiency can reach 70% above and it can realize automatic, semi-automatic production operation.

The application of biomass fuel not only protects the environment but also saves costs. Moreover, it is easy to operate and has excellent effect.


Product qualification

The previous:HDS -L15000D-Y

The next:The end
